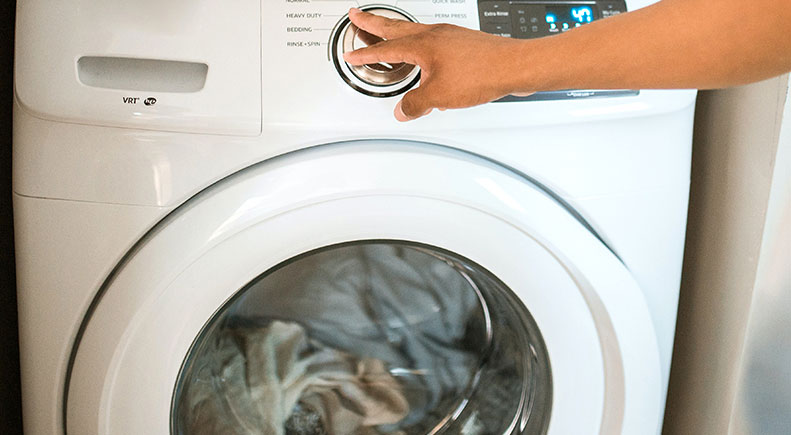

It is easy to understand that a washing machine does not wash, but rinses and spins. In such a situation, when you start the standard program, the machine “freezes,” and when you activate the “Rinse + Spin” mode, it starts working. Complete washing becomes impossible. The strange behaviour of the technology can be explained by several reasons. To make a final “diagnosis,” it is necessary to conduct a comprehensive diagnosis of the washer.
If you have problems starting the wash, the first thing to do is try again, assessing the quality of the wash. Immediately after activating the main program, pull out the detergent tray and look at the behaviour of the machine. If the equipment hummed and water poured into the powder receptacle, but after a few minutes the system froze, then the problem is in the heating element.
It is another matter when the set did not start, and the washer stopped working. In this case, the reason for the freezing lies in a banal blockage - one of the pipes connected to the powder receiver or the filling filter mesh is clogged. Fixing the problem is simple: just remove the top cover, loosen the clamps, and remove any stuck debris or scale. If there are problems with the heater, the instructions on what to do will be different. Below is a step-by-step algorithm.
The washing machine does not start washing if the heating element or the temperature sensor connected to it is broken. The explanation is simple: before starting the cycle, the system automatically checks all key components, detects heating problems, and cancels the start. Sometimes the termination of the program is accompanied by an error code on the display, but more often the machine freezes “silently.”
To confirm your guess, you need to check the heating element for serviceability. The heating element on most washing machines is located at the bottom, under the washing tub. But first, we disconnect the machine from communications and move it away from the wall. Then you should unscrew the bolts holding the rear panel, move the “back” to the side and find a round “chip” with many connected wires next to the engine. This will be the heater. Having discovered the heating element, we proceed in the following order:
If instead of the required 26-28 Ohms the multimeter outputs “1”, it means that the heating element is faulty due to an internal break. The “O” that appears on the display will indicate a short circuit. In both the first and second cases, repair will not help - only replacement. The next step is to check the heating element for breakdown. We activate the buzzer mode, touch the probe to the heater and evaluate the result. Did the device beep? Then the element cannot be used but must be urgently replaced with a new one. To replace a faulty heating element, it must be dismantled. Sometimes this is difficult to do - the rubber seal located under the heater often expands during operation, blocking the device. You can deal with the obstacle as follows:
Finding a new heating element will not be difficult. The main thing is to look for the serial number of the washing machine or heater when searching for an analogue. A win-win option is to bring the dismantled element to the store and ask for a replacement. You can install a new heater yourself. First, you should clean the seat, then fix the heating element in the grooves, return the thermistor and wiring. When connecting the latter, it is important to focus on the photographs taken before dismantling.
If testing of the heating element does not reveal any blockage, breakage, or breakdown, then the washing does not work due to the temperature sensor. The temperature sensor is located on the heater body near the central nut. It should be removed and ringed. The instructions are as follows:
The test continues by immersing the sensor in boiling water and then measuring the resistance. When the temperature rises to 500 0 C, the readings should drop to 1300 Ohms. If the values are different, then the thermistor is faulty. The situation cannot be corrected by repair, only replacing the temperature sensor.
Is the thermistor, OK? Then we inspect the wiring connected to the heater for damage and loose contacts. If no problems are identified during the diagnostics, then you should contact the service center. The control board may have fallen off. Here, independent intervention is fraught with aggravation of the breakdown, even leading to the “fatal outcome” of the equipment.
